What does ASTM A106 mean?

ASTM A106 is a grade that covers a specification of carbon piping components that are seen in high-temperature service. The A106 Pipe is designed with a chemical content of carbon, manganese, phosphorous, sulfur, silicon, copper chromium, molybdenum, nickel, and vanadium. The Pipe A106 is divided into three classes i.e. Grade A, B, and C. The grade is suitable for welding, bending, flanging, and a range of forming operations. The components within this grade are generally seen in oil and gas refineries, power plants, boilers, and in the transportation of high pressure and temperature fluids and gases.

Is A106 Gr B killed carbon steel?

The A106 Grade B Pipe is a black carbon steel grade that is killed for use in high pressure and temperature service. The robust ASTM A106 Gr.B Material is deoxidized by adding a suitable agent before casting the steel. This gives the material a high degree of homogeneity as it has good freedom against gas porosities.

Is A106 galvanized?

The A106 grade is designed to deal with different pressure and temperature systems. The grade is generally galvanized to give the components enhanced tolerance. A106 galvanized pipe is hot dipped in a nickel bath. Here the nickel coats itself to the surface of the pipe. The coating of nickel protects the item against reduction and corrosive constituents.

What is the difference between A106 Gr B and SA106 Gr B?

A106 Gr B and SA106 Gr B belong to two important standards that classify material. Both these grades have many similar characteristics, but can be distinguished on key features.

  • ASTM A106 Gr B Pipe covers standard specifications for non-pressurized vessel grades. On the contrary, an SA106 Gr B is a feature in pressurized vessel grades.
  • SA 106 Gr B Seamless Pipe is suitable in temperatures ranging from -20 degrees F and as high as 400 degrees F in high stress-induced setups. The A106 Grade B Seamless Pipe is designed to work in moderate temperatures and pressures as compared to the ASME grade.
  • ASTM A106 Gr B Sch 40 is mostly not stipulated by state level legal requirements. The grade belongs to an organization that lays down standards and dimensions for different technological services. The A106 Gr.B Material covers around 12,000 or more standards. The ASME gr B A106 components are stipulated by national codes, they follow certain standards set by ASTM. The pressurized vessel grade has nearly 600 codes for designing different components.



SA 106 Gr B Sch 40 and ASTM A106 Grade B Seamless Pipe manufacturer in India

comment image

Table of Contents


ASTM A106 Grade B Pipe

ASTM A106 Gr B Specification

A106 Gr B Material Specification
SA 106 Pipes Standards / ASTM A A106 Gr B StandardASTM, ASME and API, ANSI B 36.10
SA106 Gr C CraftCold rolled and Cold drawn
ASTM A106 Gr B Smls ANSI StandardB1.20.
ASTM A106grb GradesASTM A106 Gr A, Gr B, Gr C
Types of ASTM SA106ERW / Seamless / Fabricated / Welded
Marking
  • Nominal Pipes Sizes
  • Specification
  • Manufacturing Method (Welded / Seamless)
  • Gr
  • Pipes Schedule or Wall Thickness
  • Supplier / Manufacturer’s Name or Custom Logo - on request
  • Heat Number
Size of SA 106 Gr B Pipes1/2” NB to 36” NB
ASME A106 Gr B LengthMinimum 3 Meters, Maximum 18 Meters
A106grb Material Thickness3-12mm
Specialized inLarge Diameter ASTM A106 Gr B Pipe
Material Test Certificate (MTC) provided by ASTM A106 Gr B Pipe Supplier

ISO 14001:2015, PED, ISO 9001:2005, Ultrasonic Testing (UT), NDE, EIL, Radiographic Testing (RT), IBR,

Schedules Chart of Cs A106Schedule 20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH & heavier
ASTM SA 106 ASME StandardB36.10M
ASTM A106 Gr ToleranceCold drawn pipes: +/-0.1mm
Cold rolled pipes: +/-0.05mm
Supplier of ASTM A106 Pipes offer various shapesRound, Oval, Triangle, Semi-Round, Semi-oval, Rhomboid, Square, Rectangle, Hollow, Elliptical, Hollow, Semi-Rhomboid,
End of ASTM A106 Seamless PipesPlain End, Beveled End, Treaded

A106 Pipe Types

ASTM A106 Gr B

ASTM A106 Gr B

A106 Gr B

A106 Gr B

SA 106 Seamless Pipe

SA 106 Seamless Pipe

Pipe A106

Pipe A106

A106 Grade B Pipe

A106 Grade B Pipe

SA 106 Gr B Seamless Pipes

SA 106 Gr B Seamless Pipes

A106 Grade B Seamless Pipe

A106 Grade B Seamless Pipe

A106 Galvanized Pipe

A106 Galvanized Pipe

ASTM A106 Gr B Sch 40

ASTM A106 Gr B Sch 40

ASTM A106 Gr.b Material

ASTM A106 Gr.b Material

ASTM A106 Grade B Pipe

ASTM A106 Grade B Pipe

A106 Gr.b Material

A106 Gr.b Material

Seamless Pipe ASTM A106 Grade B

Seamless Pipe ASTM A106 Grade B

A106 Carbon Steel Pipe

A106 Carbon Steel Pipe

SA 106 Gr B

SA 106 Gr B

Carbon Steel Pipe ASTM A106 Gr.b

Carbon Steel Pipe ASTM A106 Gr.b

A106 Pipe

A106 Pipe

A106 Seamless Pipe

A106 Seamless Pipe

A106 Steel Pipe

A106 Steel Pipe

A106b Pipe

A106b Pipe

SA 106 Gr B Material

SA 106 Gr B Material

A106 Grade B Material

A106 Grade B Material

ASTM A106 Gr.b Seamless Pipe

ASTM A106 Gr.b Seamless Pipe

A106 Gr B Pipe

A106 Gr B Pipe

A106 Gr B Pipes

A106 Gr B Pipes

A106 Gr.b

A106 Gr.b

CS Pipe ASTM A106 Grade B

CS Pipe ASTM A106 Grade B

Pipe ASTM A106 Grade B

Pipe ASTM A106 Grade B

SA106 Grade B Material

SA106 Grade B Material

ASTM A106 Grade B Seamless Pipes

ASTM A106 Grade B Seamless Pipes

ASTM A106 Gr B Seamless Pipes

ASTM A106 Gr B Seamless Pipes

SA 106 Gr B Erw Pipes

SA 106 Gr B Erw Pipes

A106 Gr B Material

A106 Gr B Material

ASTM A106 Gr B Smls

ASTM A106 Gr B Smls

ASTM A106grb

ASTM A106grb

SA 106 Gr B Pipes

SA 106 Gr B Pipes

A106grb Material

A106grb Material

A106b Seamless Pipes

A106b Seamless Pipes

SA 106 Gr B Sch 40

SA 106 Gr B Sch 40

Manufacturer of ASTM A106 Gr B Seamless Pipe and SA 106 Gr B ERW Pipe in India, Check A106 Gr b equivalent and A106 Pipe price list

SA 106 Gr B Pipe Price

We are Largest Pipe A106 Suppliers in India. Check Ready Stock of A106 Grade B Pipe, SA 106 Gr B Seamless Pipe and ASTM A106 Pipe Price List

ASTM A106 Grade B Pipe Price
DescriptionPer Unit (INR)
SEAMLESS PIPES ASTM/ASME A/SA 106 GRADE B,C=MAX.O,22%, OUTSIDE RUSTPROTECTED, TOL. OD >114.3MM+/- 1% (355.6X27.79 X14)183
HOT FINISHED SEAMLESS CARBON STEEL PIPES ASTM A333M GR.6, BEVEL ENDS (SIZE: 406.40 X 7.92 X 10000 MM) (72 PCS)234
CARBON SEAMLESS STEEL PIPES, ASTM A106, OD 355.6MM (CGNJKD2, SIZE-14 S-100 H2) 124.4 MTR 35
CARBON SEAMLESS STEEL PIPES, ASTM A106, OD 323.9MM (CPP0AATK, SIZE-12 S-STD) 3104.71 MTR 34
CARBON SEAMLESS STEEL PIPES, ASTM A106, OD 355.6MM (CPP0AMRT, SIZE-14 S-STD) 114.6 MTR 37
CARBON SEAMLESS STEEL PIPES, ASTM A106, OD 323.9MM (CGNDGVP, SIZE-12 S-80 H2) 154.44 MTR 35
CARBON SEAMLESS STEEL PIPES, ASTM A106, OD 355.6MM (CGNDGXA, SIZE-14 S-80 H2) 79.59 MTR 35
CARBON SEAMLESS STEEL PIPES, ASTM A106, OD 273.1MM (CGNNXH8, SIZE-10 S-160 H2) 32.46 MTR 34
CARBON SEAMLESS STEEL PIPES, ASTM A106, OD 273.1MM (CPP002L5, SIZE-10 S-STD) 1469.67 MTR 33

Prestige quality ASTM A106 Grade B Pipe suppliers in India offer in EN, DIN, ISO, BS, JIS or ANSI standard. also check ASTM A106 Equivalent Indian Standard

A106 Gr B Equivalent

ASTM A106 B Equivalent
FormerNew
ExecutionStandardMaterialStandardMaterial
SeamlessASTM A106GRADE BEN 10216-2P265GH

ISO Approved Seamless Pipe ASTM A106 Grade B Supplier In India. Also Check ASTM A106b Specification, A106b Equivalent and A106 Mechanical Properties

ASTM A106 Gr B Mechanical Properties

A106grb Mechanical Properties
SeamlessGrade AGrade BGrade C
Tensile Strength, min., psi48,00060,00070,000
Yield Strength, min., psi30,00035,00040,000

Buy directly from A106 Grade B Pipe manufacturers in India and save 10-11%, check A106 Gr B Material standard length, wall thickness, sizes and yield strength

ASTM A106 Gr B Seamless Pipe Length

Lengths required shall be specified on order. No “jointers” permitted unless otherwise specified. If no definite lengths required, following practice applies: Single Random — 17′ ~ 24′ lengths Double Random — 36′ ~ 44′ lengths

Wall Thickness of A106 Gr B Sch 40 Pipe

NPS
(in) 		Outside Diameter
(in) 		ASTM A106 Grade B Pipe Schedule
SCH 10SCH 20SCH 30SCH STDSCH 40SCH 60SCH XSSCH 80SCH 100SCH 120SCH 140SCH 160SCH XXS
Wall Thickness (in)
1/80.4050.0680.0680.0950.095
1/40.5400.0880.0880.1190.119
3/80.6750.0910.0910.1260.126
1/20.8400.1090.1090.1470.1470.1870.294
3/41.0500.1130.1130.1540.1540.2190.308
11.3150.1330.1330.1790.1790.2500.358
1 1/41.6600.1400.1400.1910.1910.2500.382
1 1/21.9000.1450.1450.2000.2000.2810.400
22.3750.1540.1540.2180.2180.3440.436
2 1/22.8750.2030.2030.2760.2760.3750.552
33.5000.2160.2160.3000.3000.4380.600
3 1/24.0000.2260.2260.3180.318
44.5000.2370.2370.3370.3370.4380.5310.674
55.5630.2580.2580.3750.3750.5000.6250.750
66.6250.2800.2800.4320.4320.5620.7190.864
88.6250.2500.2770.3220.3220.4060.5000.5000.5940.7190.8120.9060.875
1010.7500.2500.3070.3650.3650.5000.5000.5940.7190.8441.0001.1251.000
1212.7500.2500.3300.3750.4060.5620.5000.6880.8441.0001.1251.3121.000
1414.0000.2500.3120.3750.3750.4380.5940.5000.7500.9381.0941.2501.406
1616.0000.2500.3120.3750.3750.5000.6560.5000.8441.0311.2191.4381.594
1818.0000.2500.3120.4380.3750.5620.7500.5000.9381.1561.3751.5621.781
2020.0000.2500.3750.5000.3750.5940.8120.5001.0311.2811.5001.7501.969
2222.0000.2500.3750.5000.3750.8750.5001.1251.3751.6251.8752.125
2424.0000.2500.3750.5620.3750.6880.9690.5001.2191.5311.8122.0622.344
3030.0000.3120.5000.6250.3750.500
3232.0000.3120.5000.6250.3750.688
3434.0000.3120.5000.6250.3750.688
3636.0000.3120.5000.6250.3750.750
4242.0000.5000.6250.3750.750

Lgpipe is an ISO certified ASTM A106 Gr.B Material Supplier in India, Check SA106 Gr B Material Properties, ASTM A106 Grb Pipe Specifications and A106b Yield Strength

A106 Gr B Yield Strength

SeamlessGrade AGrade BGrade C
Tensile Strength, min., psi48,00060,00070,000
Yield Strength, min., psi30,00035,00040,000

ASTM A106 Pipe Grades

ASTM A106 Gr A Pipe

ASTM A106 Gr A Pipe

ASTM A106 Gr B Pipe

ASTM A106 Gr B Pipe

ASTM A106 Gr C Pipe

ASTM A106 Gr C Pipe

ASTM A106 Gr B Seamless Pipe

High Temperature Smls PipesAPI 5L Gr. B, ASTM A106 Gr. C/B
Low Temperature Smls Pipes ASTM A333 Gr. 6/3
Heat Exchanger Smls Tube ASTM A179
Low Temperature Smls Tube ASTM A334 Gr. 6
High Yield Smls Pipes ISO 3183 Gr.L290, L245, L320, L390, L360, L415, L485, L450
High Yield Smls Pipes API 5L Gr. X46/X42/X52/X60/X56/X65/X80/X70 PSL-2/PSL-1
Atmospheric & Low Temp EFW Pipes ASTM A671 Gr. CC65/CC60/CC70
High Yield SAW/ERW Pipes API 5L Gr. X46/X42/X52/X60/X56/X65/X80/X70 PSL-2/PSL-1
High Pressure & Moderate Temp EFW Pipes ASTM A672 Gr. B65/B60/B65/B70/C60/C55/C65/C70
High Yield ERW/SAW Pipes ISO 3183 Gr.L245, L290, L320, L360, L390, L415, L450, L485

A106 Gr B Welded Pipe

Carbon Steel Welded and seamless Pipes
1/2 to 6 NPS 		Dimensions and weights
section modulus and gallons
capacity per linear foot

Lg Pipes & Tubes is a leading manufacturer supplying A106 Pipe in United States, UAE, Bahrain, Oman, Egypt, Saudi Arabia, Indonesia, Turkey, Nigeria, Malaysia and Middle East, 600 tons of ready stock of A106 Gr B in India

ASTM A106 Gr B Pipe Chemical Composition

Please Check SA106 Chemical Composition and ASTM A106 Composition Table Below

A106b Chemical Composition
Grade AGrade BGrade C
Carbon max. %0.250.300.35
Manganese %0.27 to 0.930.29 to 1.060.29 to 1.06
Phosporous, max. %0.0250.0250.025
Sulfur, max. %0.0250.0250.025
Silicon, min. %0.100.100.10

Get ASTM A106 Specification, check Weight Chart Of Seamless Pipe ASTM A106 Grade B, ASTM A106 Gr.B Material Suppliers In Mumbai. India.

SA 106 Gr B Pipe Weight Chart

Size NPSPipes O.D.Wall ThicknessPipes I.D.Weight per FootStandard to XXHYSchedule
Pipes # 		Section ModulusGallon Capacity Per Linear Foot
1/20.840.1090.6220.85STD40.0407.0158
0.1470.5461.09XHY80.0478.0122
0.1880.4641.31 160.0528.0088
0.2940.2521.72XXHY .0577.0026
3/41.050.1130.8241.13STD40.0705.0277
0.1540.7421.48XHY80.0853.0225
0.2190.6121.95 160.1006.0153
0.3080.4342.44XXHY .1103.0077
11.3150.1331.0491.68STD40.1328.0449
0.1790.9572.17XHY80.1606.0374
0.2500.8152.85 160.1904.0271
0.3580.5993.66XXHY .2136.0146
1 1/41.660.1401.3802.27STD40.2346.0777
0.1911.2783.00XHY80.2913.0666
0.2501.1603.77 160.3421.0549
0.3820.8965.22 .4110.0328
1 1/21.900.1451.6102.72STD40.3262.1058
0.2001.5003.63XHY80.4118.0918
0.2811.3384.86 160.5079.0730
0.4001.1006.41 .5977.0494
22.3750.1092.1572.64 10.4205.1898
0.1542.0673.66STD40.5606.1743
0.2181.9395.03XHY80.7309.1534
0.2501.8755.68 .8045.1434
0.2811.8136.29 .8666.1344
0.3441.6877.47 160.9806.1161
0.4361.5039.04XXHY 1.1043.0922
2 1/22.8750.1202.6353.53 10.6870.2833
0.2032.4695.80STD.401.0640.2487
0.2162.4436.14 1.1169.2435
0.2502.3757.02 1.2468.2301
0.2762.3237.67XHY801.3386.2202
0.3752.12510.02 1601.6371.1842
0.5521.77113.71XXXHY 1.9971.1280
33.500.1203.2604.34 1.0411.4336
0.1563.1885.58 1.3122.4147
0.1723.1566.12 1.4265.4064
0.1883.1246.66 1.5342.3984
0.2163.0687.58STD.401.7241.3840
0.2503.0008.69 1.9372.3672
0.2812.9389.67 2.1207.3521
0.3002.90010.26XHY802.2253.3431
0.4382.62414.34 1602.8774.2811
0.6002.30018.6XXHY 3.4243.2158
3 1/24.00.1203.7604.98 101.3776.5768
0.2263.5489.12STD.1402.3939.5136
0.2503.50010.02 2.6001.4998
0.2813.43811.17 2.8562.4821
0.3183.36412.52XHY803.1400.4617
0.6362..72822.87XXHY 4.8795.3085
44.50.1204.2605.62 101.7612.7404
0.1564.1887.24 2.2354.7156
0.1884.1248.67 2.6296.6942
0.2034.0949.32 2.8173.6838
0.2194.06210.02 3.0184.6725
0.2374.02610.80STD.403.2145.6613
0.2504.00011.36 3.3611.6528
0.2813.93812.67 603.7021.6326
0.3123.87613.97 4.0273.6126
0.3373.82615.00XHY804.2713.5972
0.4383.62419.02 1205.1790.5361
0.5313.43822.53 1605.8997.4822
0.6743.15227.57XXHY 6.7927.4054
55.5630.1885.18710.80 4.11611.0979
0.2195.12512.51 4.72791.0716
0.2585.04714.63STD.405.45001.0391
0.2815.00115.87 5.86441.0204
0.3124.93917.51 6.4074.99647
0.3444.87519.19 6.9358.9696
0.3754.81320.80XHY807.4300.9449
0.5004.56327.06 1209.2534.8495
0.6254.31332.99 16010.7976.7590
0.7504.06338.59XXHY 12.0954.6734
66.6250.1096.4077.59 53.57691.6748
0.1346.3579.30 104.34751.6488
0.1566.31310.79 5.01071.6260
0.1886.24912.94 5.93511.5937
0.2036.21913.94 6.38041.5780
0.2196.18715.00 6.82611.5620
0.2506.12517.04 7.69051.5306
0.2806.06518.99STD.408.49581.5008
0.3126.00121.06 9.34161.4688
0.3445.93723.10 10.1111.4391
0.3755.87525.05 10.8931.4082
0.4325.76128.60XHY8012.2241.3541
0.5005.62532.74 13.7111.2909
0.5625.50136.43 12014.98061.2346
0.6255.37540.09 16.18211.1787
0.7195.18745.39 16017.82431.0977
0.8644.89753.21XXHY 20.025.9784
1.0004.62560.13 21.7719.8727
1.1254.37566.14 23.1237.7809

A106b Pipe Tolerance

NPS1/8″ to 1 1/2″Over 1 1/2″ to 4″Over 4″ to 8″Over 8″ to 18″Over 18″ to 26″Over 26″ to 34″Over 34″ to 48″
OD Tolerance+/- 0.4+/- 0.8+1.6, -0.8+2.4, -0.8+3.2, -0.8+4.0, -0.8+4.8, -0.8
WT Tolerance

+/- 12.5%

Weight Tolerance

+10%, -3.5%

Exporter & supplier of SA 106 Gr B Seamless Pipe and ASTM A106 Gr.B Material with MTC according to NACE MR0175/ EN 10204 3.1/ ISO 10474/ PED 2014/68/EU

ASTM A106 Pipe Certificate

  • EN 10204/3.1B,
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report, etc

View SA 106 Gr B Seamless Pipes Dimensions And SA 106 Gr B and A106 Pipe Specification

SA106 Pipe Dimensions

SA 106 Gr B Mechanical Properties

Lgpipe is an ISO certified A106 Gr.B Material Suppliers in India. View A106 Gr B Pipe Specification and SA 106 Gr B Composition

SA 106 Gr B Mechanical Properties

ASTM A106 B Properties
A106 Gr B Tensile Strength, min, psi60,000
astm a106 grade b yield strength , min, psi35,000

Mechanical Properties:

GradeTensile Strength (Mpa), Min.Yield Strength (Mpa), Min.
A330205
B415240
C485275

A106 Grade B Seamless Pipe Stock

Pipes/ Tubes TypeNB SizesSch 5Sch 10Sch 40Sch 80Sch 160
A106 Gr B1/2✓✓✓✓
A106 Gr B Sch 403/4✓✓✓✓
ASTM A106 Gr B Galvanized1✓✓✓✓
A106 Gr B Erw Pipes1.25✓✓✓✓✓
ASTM A1061.5✓✓✓✓✓
SA 106 Gr B2✓✓✓✓✓
A 106 Gr B2.5✓✓✓✓✓
ASTM A 106 Gr B3✓✓✓✓✓
ASTM A106b3.5✓✓✓✓✓
A106b Pipes4✓✓✓✓✓
SA 106 Gr B Material5✓✓✓✓✓
A106 Grb6✓✓✓✓✓
ASTM A A106 Gr B8✓✓✓✓✓
A106b Material10✓✓✓✓✓
A106grb12✓✓✓✓✓
Pipe A10614✓✓✓✓✓
ASTM A106 Pipes16✓✓✓✓✓
Asme A10618✓✓✓✓✓
Carbon Steel ASTM A10620✓✓✓✓✓
SA 106 B Material22✓✓✓✓
A106 Carbon Steel24✓✓✓✓
Manufacturer of A106b Seamless Pressure Pipe with FBE/ PTFE coating in desired thickness, custom sizes available in ASTM A106 Gr B Sch 40 Epoxy Coated Pipe in India

SA 106 Gr B Pipe Sizes

NBSizeOD40S5S10SS10S20S40S60XS/80SS80S100S120S140S160XXS
mmmmmmmmmmmmmmmmmmmmmmmmmmmmmm
1/8”10.291.21.732.41
1/4”13.721.72.243.02
3/8”17.151.72.313.2
151/2”21.342.81.72.12.773.733.734.787.47
203/4”26.672.91.72.12.873.913.915.567.82
251”33.43.41.72.83.384.554.556.359.09
321 1/4”42.163.61.72.83.564.854.856.359.7
401 1/2”48.263.71.72.83.685.085.087.1410.2
502”60.333.91.72.83.915.545.549.7411.1
652 1/2”73.035.22.13.15.167.017.019.5314
803”88.95.52.13.15.497.627.6211.115.2
903 1/2”101.65.72.13.15.748.088.08
1004”114.362.13.16.028.568.5611.113.517.1
1255”141.36.62.83.46.559.539.5312.715.919.1
1506”168.37.12.83.47.1110.971114.318.322
2008”219.18.22.83.86.48.1810.312.712.715.119.320.62322.2
25010”273.19.33.44.26.49.2712.712.715.119.321.425.428.625.4
30012”323.99.544.66.410.314.312.717.521.425.428.633.325.4
35014”355.69.544.86.47.911.115.112.719.123.827.831.835.7
40016”406.49.54.24.86.47.912.716.712.721.426.23136.540.5
45018”457.29.54.24.86.47.914.319.112.723.829.434.939.745.2
50020”5089.54.85.56.49.515.120.612.726.232.538.144.550
55022”558.89.54.85.56.49.522.212.728.634.941.347.654
60024”609.69.55.56.46.49.517.524.612.73138.94652.459.5
65026”660.49.57.91312.7
70028”711.29.57.91312.7
75030”7629.56.47.97.91312.7
80032”812.89.57.91317.512.7
85034”863.69.57.91317.512.7
90036”914.49.57.91319.112.7

Get instant delivery Of A106 Grade B Seamless Pipe, Check SA 106 Gr B Material Composition, ASTM A106 Gr B Sch 40 Suppliers In Mumbai. India.

Coating of A106 Carbon Steel Pipe

Carbon Steel SA106 Cement Lined Steel Pipe

Carbon Steel SA106 Cement Lined Steel Pipes

ASME SA106 Grade B 3LPE Coated Pipes

ASME SA106 Grade B 3LPE Coated Pipes

CS ASTM A106 Grade B PE Coated Pipes

CS ASTM A106 Grade B PE Coated Pipes

CS ASTM A106 Gr B Epoxy Coated Steel Pipes

CS ASTM A106 Gr B Epoxy Coated Steel Pipes

CS A106 Gr B Powder Coated Pipes

CS A106 Gr B Powder Coated Pipes

CS A106 Grade B PTFE Lined Pipes

CS A106 Grade B PTFE Lined Pipes

Difference Between API 5L And ASTM A106

API 5L is normally used for both seamless steel pipes and welded steel pipes,but ASTM A106 is specially for seamless carbon steel pipes which can be used for high-temperature and high-pressures service.

Chemical Requirement

StandardsC max %Mn max%S max %Si min %Cr max %Cu max %
A106 Gr. B0.300.29-1.060.0350.100.400.40
API 5L Gr.B0.281.200.030/0.500.50

Tensile Requirement

StandardsTensile Strength MpaYield Strength MpaElongation %
A106 Gr. B≥415≥24020
API 5L Gr.B≥415≥24523

ASTM A106 Pipe Packaging

ASTM A106 Pipe Packaging
ASTM A106 Gr B Pipe Packaging
ASTM A106 Grade B Pipe Packaging

Carbon Steel Pipe ASTM A106 Gr.b Pressure Rating

Maximum Allowable Pressure (psig)
A106 Pipes Size
(inches) 		Pipes ScheduleTemperature (oF)
100200300400500600650700750
1"401285728572857285728572857285727432476
802395039503950395039503950395037923423
160575757575757575757575757575755264989
1 1/2"40211621162116211621162116211620321834
80298329832983298329832983298328642585
160433143314331433143314331433141573753
2"40178317831783178317831783178317121545
80257525752575257525752575257524722232
160421742174217421742174217421740493655
3"40169316931693169316931693169316251467
80239423942394239423942394239422982074
160360036003600360036003600360034563120
4"40143514351435143514351435143513781244
80207520752075207520752075207519921798
160337633763376337633763376337632412926
5"40125812581258125812581258125812081090
80185718571857185718571857185717831610
160320132013201320132013201320130732774
6"4011431143114311431143114311431098991
80179417941794179417941794179417221554
160308330833083308330833083308329602672
8"401006100610061006100610061006966872
80158615861586158615861586158615231375
160297629762976297629762976297628572579
10"40913913913913913913913876791
80150915091509150915091509150914481308
160295029502950295029502950295028322557

Check A106 Grb Specifications And ASTM A106 Gr B Seamless Pipes Composition, Also View A106b Pipes Spec

A106 Gr B Temperature Range

ASTM A106 - 20F (-29C) to 800F (427C)

A106 Seamless Pipe Diameter

NPSUnderOver
InchMilimeterInchMilimeter
Over 4 to 8 [100 to 200], incl1/32 (0.031)0.81/16 (0.062)1.6
Over 8 to 18 [200 to 450], incl1/32 (0.031)0.83/32 (0.093)2.4
1/8 to 1-1/2 [6 to 40], incl1/64 (0.015)0.41/64 (0.015)0.4
Over 26 to 34 [650 to 859], incl1/32 (0.031)0.85/32 (0.156)4.0
Over 34 to 48 [850 to 1200], incl1/32 (0.031)0.83/16 (0.187)4.8
Over 1-1/2 to 4 [40 to 100], incl1/32 (0.031)0.81/32 (0.031)0.8
Over 18 to 26 [450 to 650], incl1/32 (0.031)0.81/8 (0.125)3.2
Diameter of MandrelDegree of Bend
For Normal A106 Uses12 x nom diameter of Pipes90
For Close Coiling8 x nom diameter of Pipes180

CS Pipe ASTM A106 Grade B Manufacturers in India, Check A106b Pipe Specification, Suppliers Of SA 106 Gr B ERW Pipes In Mumbai, One Stop Shop For All ASTM A106 Gr.B Seamless Pipes.

ASTM A106 Gr B Schedule 40 Pipe End

ASTM A106 GR B Beveled Ends (BE)

ASTM A106 GR B Beveled Ends (BE)

A106 GR B Plain Ends (PE)

A106 GR B Plain Ends (PE)

ASTM A106 Grade B Threaded Ends (TE)

ASTM A106 Grade B Threaded Ends (TE)

A106 Pipe manufacturer in India offers best price of SA 106 Gr B Sch 40, ASTM A106 gr b smls & A106 Gr B Hot Dip Galvanized Pipe in Asia

Testing of A106 Steel Pipe



  • A 106 B Pipes Hardness Test
  • SA 106 Grb Material Chemical Analysis
  • A106b Steel PMI Testing
  • A333 Gr B Flattening Test
  • Grb Pipes Flaring Test
  • A106b Seamless Pipes IGC Test
  • A106gr Pitting Resistance Test
  • SA 106 Gr B Sch 40 Mechanical Testing
  • SA 106 Gr B Seamless Pipes Micro and MacroTest
Testing of A106 Steel Pipe

Lgpipe is an ISO certified a106b seamless pipe Suppliers in India. View A106gr B Specification.

A106 Gr B Vs A53

GrCarbonManganesePhosphorusSiliconSulfurChromiumCopperNickelMolybdenumVanadium
ASTM A106 Grade B Pipes0.300.29 To 1.060.0350.0350.100.400.400.400.150.08
ASTM A53 Pipes0.301.200.050.045-0.400.400.400.150.08

A106b Pipe Stock Range

A106b Steel PipesA106 Gr A Nace Pipes
ASTM A106 Steel PipesASTM A 106b Square Pipes
ASTM A106 TubeA106 Carbon Steel Pipes
Steel Pipes A106ASME B 16.9 A106 Sch 40 Pipes
Cs A106 Gr B PipesA106 Seamless Steel Pipes
A106 PipesASTM A106 Gr B Seamless Pipes
A106 Galvanized PipesA106 Gr B Pipes
ASTM A106 Gr B MaterialASTM A 106 Gr C Epoxy Lined Pipes
A106 Gr B MaterialPipes A 106
SA106 PipesASTM A106 Seamless Steel Pipes
ASTM A 106 TubeSA106b Seamless Pipes
SA 106 Seamless PipesASTM A 106 Pipes
A106b ERW PipesSA106 Steel Heavy Wall Pipes
A106 Steel Welded PipesSA106b Carbon Steel Double Wall Pipes
ASME SA106 Schedule 40 PipesSA 106 Gr A Line Pipes
ASME SA 106 Galvanized PipesASTM A 106 Gr A Cement Lined Pipes
A106 Seamless Pipes106b Pipes
ASTM A106m Coated PipesASME 106 Pipess
106 Steel PipesA106 Gr B Pipes
A53 A106 Hot Dip Galvanized PipesThick Wall A106 Seamless Pipes
ASTM 106b Lined PipesThin Wall A 106 Gr A Pipes
SA 106 C Natural Gas PipesLarge Diameter ASME A 106 Pipes
A 106 PipesInternally Coated SA 106 Steel Pipes

Roughness of ASTM A106 Gr.b Seamless Pipe

Type of ASTM A106 GR B Pipes Roughness [mm] Roughness [inch]
ASTM A106 Gr B, drawn, new0.02 - 0.10.0008 - 0.004
welded, new0.05 - 0.10.002 - 0.004
galvanized, new0.150.006
A106 GR B, used, cleaned0.15 - 0.20.006 - 0.008
lightly corroded0.1 - 0.40.004 - 0.016
severely corroded0.4 - 30.016 - 0.12
light scaling1 - 1.50.04 - 0.06
heavy scaling1.5 - 40.06 - 0.16
bitumed coated0.050.002

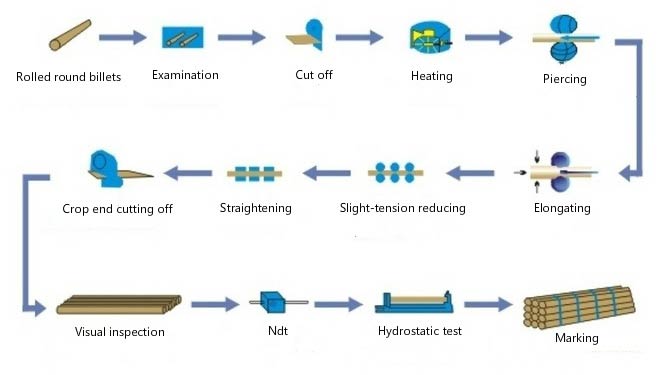

A106 Gr B Pipe Processing

A106 Gr B Pipe Processing



  • Carbon Steel Pipe A106 Hot Finished Seamless (HFS)
  • Pipe A106b Cold Drawn or Finished Seamless (CDS)
  • Gr B Pipes Electric Resistance Welding (ERW)
  • ASTM A106 Schedule 40 High Frequency Induction Welding (HFIW)
  • Api 5l A106 Hot Finished Welding (HFW) Pipes
  • Cs A106 Gr B Butt Welded Pipes (BWP)
  • SA 106m Gr B Electric Fusion Welding (EFW) Pipes
  • ASTM A106 Steel Sub-merged Arc Welding (SAW) Pipes
  • ASTM A106 Api 5l Cold Drawn Electric Resistance Welding (CEW) Pipes
  • Material A 106 Gr B Oxy Acetylene Welding (OAW) Pipes
  • AASTM A106 C Hand-Welding or Manual Arc Welding (MAW) Pipes

OD Chart of Cs Pipe ASTM A106 Grade B

OD Chart of Cs Pipe ASTM A106 Grade B

SA106 Grade B Material Marking

  • A106 A, A 106 B, A 106 C
  • Manufacturer’s name
  • A106 GR B Gr and type
  • Monogram marking
  • Heat treatment
  • Impact test temperature
  • End finish of A106grb Pipes
  • Manufacturing process
  • Weight
  • SA106c Pipes Gr and type
  • A 106 Gr B Pipes Heat treatment
  • Type of A106 Metal thread
  • Impact test temperature
SA106 Grade B Material Marking

ASTM A106 Grade B Seamless Pipe Manufacturer

  • Arcelormittal
  • Sumitomo
  • Nippon Steel & Sumitomo Metal
  • Tubacex
  • JFE Steel Corporation
  • Jindal Saw Ltd.
  • Mukat Tanks & Vessel Ltd
  • Welspun
  • Dalmine
  • Maharashtra Seamless Limited
  • U. S. Steel Tubular

ASTM A106 Grade B Heat Treatment

Hot formingHeat treatment
Temperature °CType of coolingNormalizing Stress-relieving anneal Type of cooling
1100 – 950Air890 – 950 °C600 – 650 °CAir

ASTM A106 Gr B Seamless Pipe Thickness Tolerance

ASTM A106 Gr B Seamless Pipe Thickness Tolerance

Thickness Chart of SA 106 Gr B ERW Pipe

Thickness Chart of SA 106 Gr B ERW Pipe

Get instant delivery Of A106 Carbon Steel Pipe, Check SA 106 Gr B Material Properties, A106 Pipe Suppliers In Mumbai. India.

A106 Gr B Hardness

maximum hardness of up to 100 HRB

ASTM A106 Standard

ASTM A 530/A 530M Spec for Requirements for Specialized Carbon and Alloy Steel Pipes
ASTM E309 for Eddy-Current Examination of Steel Tubular Products Using Magnetic Saturation
ASTM E213 Ultrasonic Examination of Metal Tubing and Pipes
ASTM E570 for Flux Leakage Examination of Ferromagnetic Steels Tubular Products
ASTM E 381 Method of Macroetch testing Steel Billets, Bars, Blooms, and Forgings
ASME B36.10M Welded and SMLS Wrought Steel Pipes

ASTM A106 Grade B Melting Point

Melting Point
800F (427C)

ASTM A106 Gr B Density

Density at 20 °C
Kg/dm³
7,85

ASTM A106 Grade B Thermal Expansion Coefficient

Thermal conductivity at 20 C°
W/m K 		Spec. thermal capacity at 20 C°
J/kg K
51461
